Dial Gages 0.001" and 0.0001" / Type Metric Graduations 0.01mm


Easy-reading distinct graduations.
Inch models have standard black needles and white dial faces or new, high visibility orange needles
and black faces.
Metric models have yellow dial faces.
Hard, satin-chrome finish.
Superior quality of spindle rack, pinions and gear trains ensure longevity.
Meets or exceeds applicable US federal specifications.
Conforms to AGD specifications.
Revolution counter on all models, except 1200 and 1201.
Type Metric Graduations 0.01mm
Dial Gages 0.001" and 0.0001"

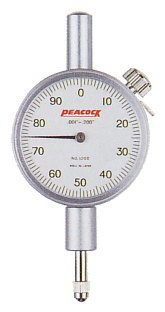

Model 1200
Graduation 0.001"
Range 0.20"
Lug back		 1200

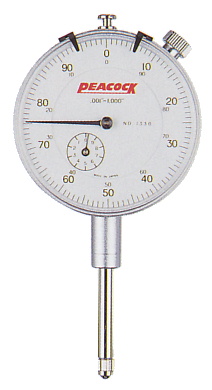

Model 1330
Graduation 0.001"
Range 1.0"
Lug back		 1330

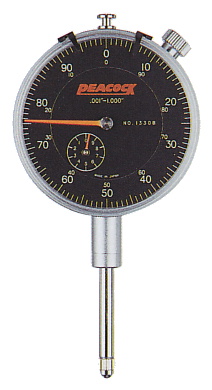

Model 1330B
Graduation 0.001"
Range 1.0"
Lug back		 1330B

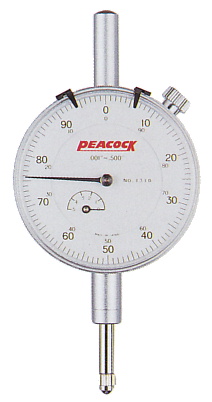

Model 1310
Graduation 0.001"
Range 0.50"
Lug back		 1310

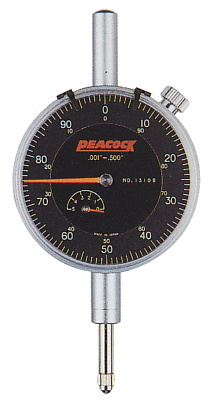

Model 1310B
Graduation 0.001"
Range 0.50"
Lug back		 1310B

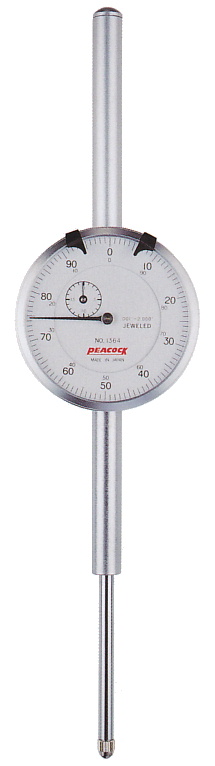

Model 1364
Graduation 0.001"
Range 2.0"
Lug back		 1364

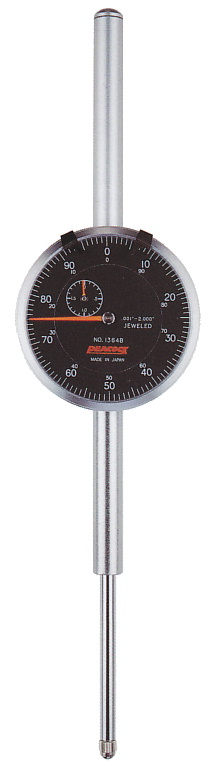

Model 1364B
Graduation 0.001"
Range 2.0"
Lug back		 1364B

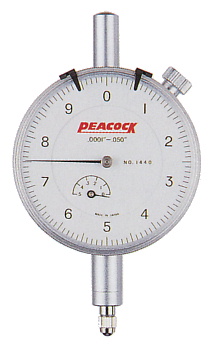

Model 1440
Graduation 0.0001"
Range 0.05"
Lug back		 1440

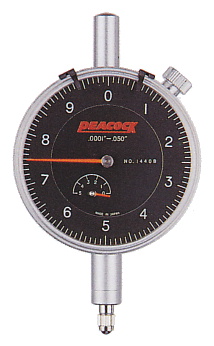

Model 1440B
Graduation 0.0001"
Range 0.05"
Lug back		 1440B

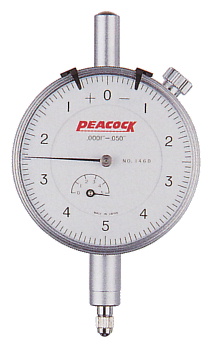

Model 1460
Graduation 0.0001"
Range 0.05"
Flat back		 1460

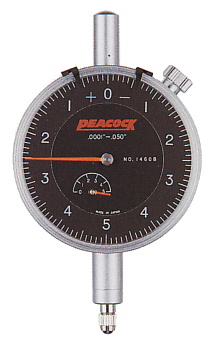

Model 1460B
Graduation 0.0001"
Range 0.05"
Flat back		 1460B

Specifications
White face
model No.		 Black face
model No.		 Measuring
range		 Graduation Reading Back config AGD
1200 0.20" 0.001" 0 - 100 Lug 1
1330 1330B 1.0" 0.001" 0 - 100 Lug 2
1310 1310B 0.50" 0.001" 0 - 100 Lug 2
1364 1364B 2.0" 0.001" 0 - 100 Lug 2
1440 1440B 0.05" 0.0001" 0 - 10 Lug 2
1460 1460B 0.05" 0.0001" 0 - 5 - 0 Flat 2

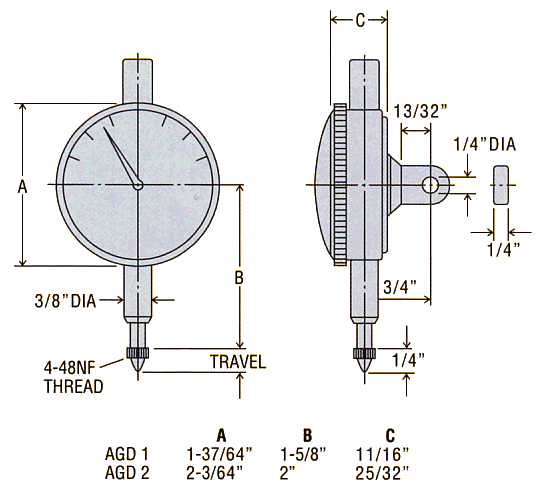

Dimensions
Dimensions

| Page Top |

Easy-reading distinct graduations.
Inch models have standard black needles and white dial faces or new, high visibility orange needles
and black faces.
Metric models have yellow dial faces.
Hard, satin-chrome finish.
Superior quality of spindle rack, pinions and gear trains ensure longevity.
Meets or exceeds applicable US federal specifications.
Conforms to AGD specifications.
Revolution counter on all models, except 1200 and 1201.
Type Metric Graduations 0.01mm

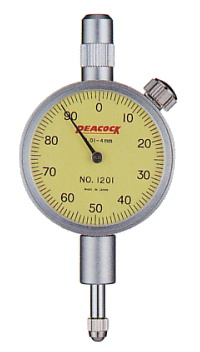

Model 1201
Graduation 0.01mm
Range 4.0mm
Lug back		 1201

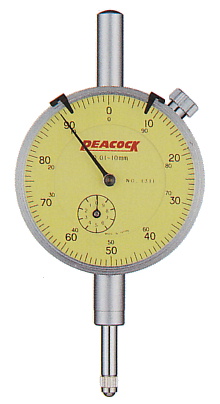

Model 1311
Graduation 0.01mm
Range 10.0mm
Lug back
1311

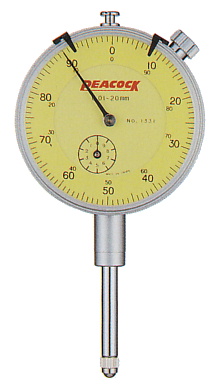

Model 1331
Graduation 0.01mm
Range 20.0mm
Lug back
1331

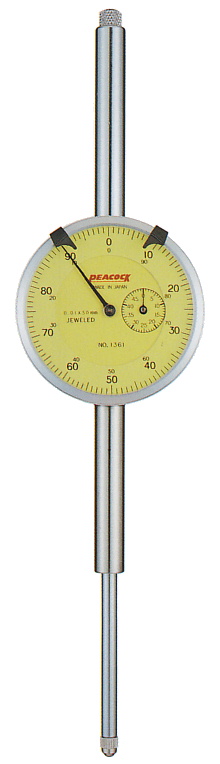

Model 1361
Graduation 0.01mm
Range 50.0mm
Lug back
1361

Specifications
Yellow face model No. Measuring range Graduation Reading Back config AGD
1201 4.0mm 0.01mm 0 - 100 Lug 1
1311 10.0mm 0.01mm 0 - 100 Lug 2
1331 20.0mm 0.01mm 0 - 100 Lug 2
1361 50.0mm 0.01mm 0 - 100 Lug 2

Dimensions
Dimensions
