Lever Type Dial Indicators PIC TEST; Judging Pic Test (0 - 0 Pic Test)


Judging Pic Test ( 0 - 0 Pic Test ) Model No. PCC-1X

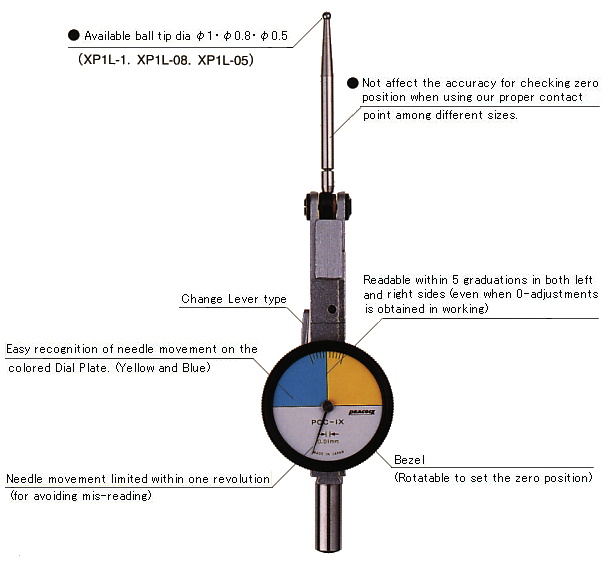

Most suitable for centering, paralleling, and works to eliminate sways
Easy recognition of needle movement on the colored dial plate
(having different colors on both sides of the point 0)
Readable within 5 graduations in both left and right sides
(even when 0-adjustments is obtained in working)
Needle movement limited within one revolution
(for avoiding mis-reading)
Model PCC-1X
Repeatability 3ƒÊm
Retrace error 4ƒÊm
Graduation
0.01mm
PCC-1X

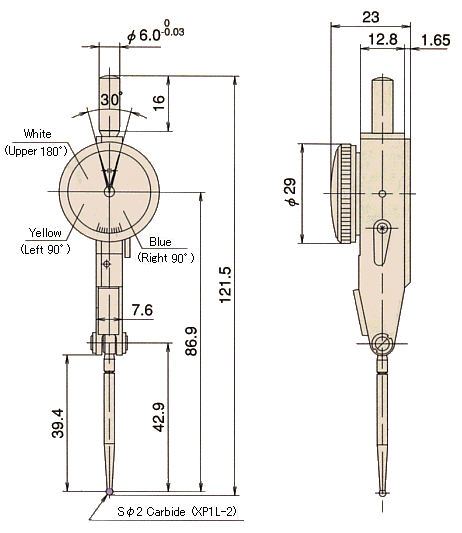

Outer dimension ; PCC-1X
Outer dimension ; PCC-1X
