Cylinder Gauges ; Special length below grip

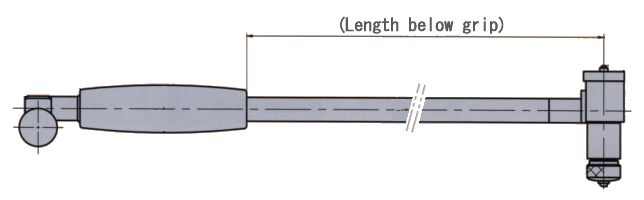

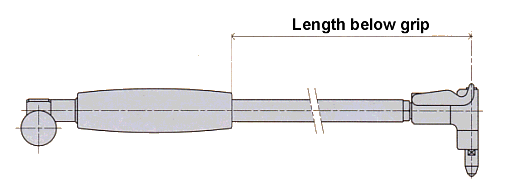

"CC" type ; List of special length below grip (available on request) Model Range (mm) Length below grip (L) (mm) CC-01 10 - 18 L 50 L 200 L 300 CC-1 18 - 35 L 100 L 200 L 300 L 400 L 500 CC-2 35 - 60 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 L 1500 L 2000 CC-3 50 - 100 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 L 1500 L 2000 CC-3C 50 - 150 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 L 1500 L 2000 CC-4 100 - 160 L 50 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 L 1500 L 2000 CC-5 160 - 250 L 50 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 L 1500 L 2000 CC-6 250 - 400 L 50 L 100 L 200 L 300 L 500 L 600 L 700 L 800 L 900 L 1000 L 1500 L 2000 "CG" type ; List of special length below grip (available on request) Model Range (mm) Length below grip (L) (mm) CG-01 10 - 18 L 50 L 200 L 300 CG-1 18 - 35 L 50 L 100 L 200 L 300 L 400 L 500 CG-2 35 - 60 L 50 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 CG-3 50 - 100 L 50 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 CG-3C 50 - 150 L 50 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 CG-4 100 - 160 L 50 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 CG-5 160 - 250 L 50 L 100 L 200 L 300 L 400 L 500 L 600 L 700 L 800 L 900 L 1000 CG-6 250 - 400 L 50 L 100 L 200 L 300 L 500 L 600 L 700 L 800 L 900 L 1000 | HOME | Product Information | Cylinder Gauges | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
