Applied Dial Thickness Gauges 0.01mm type


Applied Dial Thickness Gauges
LOW MEASURING FORCE 0.4N
TO MEASURE THICKNESS OF SOFT MATERIAL
G-0.4N, H-0.4N (Stamped with 0.4N)
HIGH MEASURING FORCE 2.4N
TO MEASURE THICKNESS OF HARD MATERIAL
G-2.4N, H-2.4N (Stamped with 2.4N)
LARGE DIA CONTACT POINT AND ANVIL
BEST MEASUREMNT OF Urethane form, common fabric and so on!
G-20, H-20 (20mm dia ; Flat type)
G-30, H-30 (30mm dia ; Flat type)
Applied Dial Thickness Gauges 0.01mm type
Model G-0.4N
Graduation 0.01mm
Range 0 - 10mm
Measuring force initial pressure 0.4N
Ø10mm flat contact point and anvil (ceramic)
G-0.4N

Model G-2.4N
Graduation 0.01mm
Range 0 - 10mm
Measuring force final pressure 2.4N
Ø10mm flat contact point and anvil (ceramic)
G-2.4N
Model H-0.4N
Graduation 0.01mm
Range 0 - 10mm
Measuring force initial pressure 0.4N
Ø10mm flat contact point and anvil (ceramic)
H-0.4N

Model H-2.4N
Graduation 0.01mm
Range 0 - 10mm
Measuring force final pressure 2.4N
Ø10mm flat contact point and anvil (ceramic)
H-2.4N
Model G-20
Graduation 0.01mm
Range 0 - 10mm
Ø20mm flat contact point and anvil (metal)
G-20
Model G-30
Graduation 0.01mm
Range 0 - 10mm
Ø30mm flat contact point and anvil (metal)
G-30


Model H-20
Graduation 0.01mm
Range 0 - 10mm
Ø20mm flat contact point and anvil (metal)
H-20
Model H-30
Graduation 0.01mm
Range 0 - 10mm
Ø30mm flat contact point and anvil (metal)
H-30

Specifications
Model Graduation
(mm)
Range
(mm)
Throat depth
(mm)
Accuracy
(µm)
Contact Point Measuring force
less than (N)
Dia (mm) Parallelism (µm)
G-0.4N 0.01 0 - 10 20 }20 10 5 Initial pressure 0.4N
G-2.4N 0.01 0 - 10 20 }20 10 5 Final pressure 2.4N
G-20 0.01 0 - 10 20 }20 20 (metal) 15 1.8
G-30 0.01 0 - 10 20 }20 30 (metal) 20 1.8
H-0.4N 0.01 0 - 10 120 }20 10 5 Initial pressure 0.4N
H-2.4N 0.01 0 - 10 120 }20 10 5 Final pressure 2.4N
H-20 0.01 0 - 10 120 }20 20 (metal) 15 1.8
H-30 0.01 0 - 10 120 }20 30 (metal) 20 1.8
Examples of modification for contact point and anvil

Page Top |


Dimensions; G-0.4N, G-2.4N
Dimensions ; G-0.4N, G-2.4N

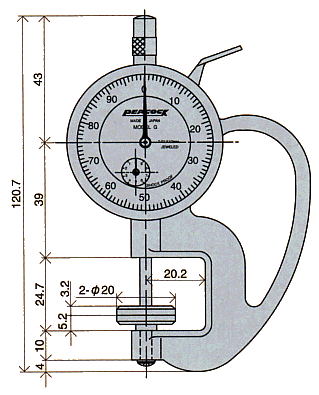

Dimensions; G-20
Dimensions ; G-20

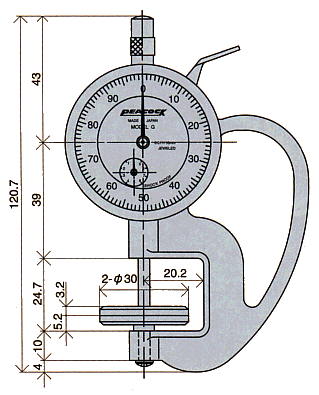

Dimensions; G-30
Dimensions ; G-30


Dimensions; H-0.4N, H-2.4N
Dimensions ; H-0.4N, H-2.4N


Dimensions; H-20
Dimensions ; H-20


Dimensions; H-30
Dimensions ; H-30
