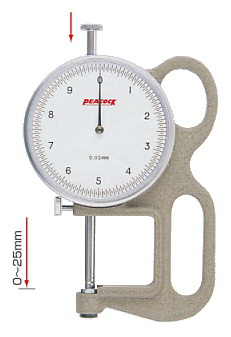

The dial swift gauge is used for the same purpose as an ordinary micrometer to
measure outside sizes.
 |
The spindle is always pulled upward by the force of the spring. The knob at the
top of the gauge is pushed down by finger to clamp an object in measurement. |
|
It will show its power for measurement of thickness, heights and diameters. |
|
 Dial Swift Gauge |
| Model |
Q-1 |
| Graduation |
0.05mm |
| Range |
0 - 25mm |
 Ø5.5mm flat contact point and
anvil (metal)
 |

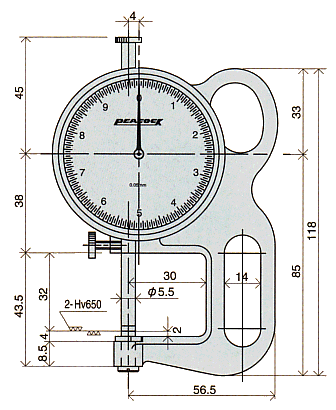

Dimensions; Q-1
 |
| Specifications |
| Model |
Graduation
(mm) |
Range
(mm) |
Throat depth
(mm) |
Accuracy
(µm) |
Contact Point |
Measuring force
less than (N) |
| Dia (mm) |
Parallelism (µm) |
| Q-1 |
0.05 |
0 - 25 |
30 |
±100 |
5.5 |
10 |
-- |
|
|
|
Design and specifications are subject to change without notice for future
improvement.
