Dial Lens Gauge


The dial lens gauge can measure convex, concave, convexo-concave and any other
lenses in the same gauge by replacing the two contact points and the anvil.

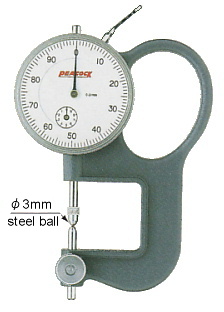

Dial Lens Gauge
Model GL
Graduation 0.01mm
Range 10mm
GL
Flat contact point

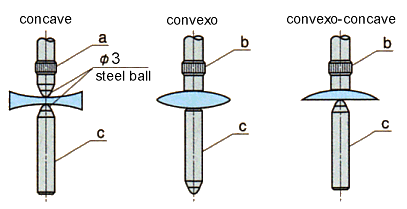

 Applied examples
GL ; Applied examples


Specifications
Model Graduation
(mm)
Range
(mm)
Throat depth
(mm)
Accuracy
(µm)
maximum lens
diameter
measurable (mm)
maximum lens
thickness
measurable (mm)
Measuring force
less than (N)
GL 0.01 10 30 }20 ø 59 20 1.8

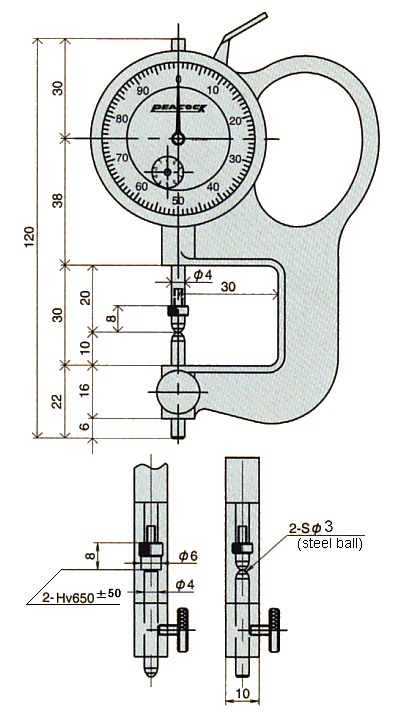

Dimensions; GL
Dimensions ; GL
