Dial Sheet Gauges 0.01mm and 0.05mm

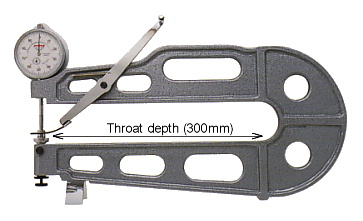

The sheet gauges can measure wide sheets since the throat depth of this gauges having 300, 500mm. Dial Sheet Gauges 0.01mm and 0.05mm Model K-1 Graduation 0.01mm Range 0 - 20mm Throat depth 300mm Ø10mm flat contact point   and Ø20mm anvil Model K-2 Graduation 0.05mm Range 0 - 35mm Throat depth 300mm Ø20mm flat contact point   and anvil Model K-3 Graduation 0.01mm Range 0 - 20mm Throat depth 500mm Ø10mm flat contact point   and Ø20mm anvil Model K-4 Graduation 0.05mm Range 0 - 50mm Throat depth 500mm Ø25mm flat contact point   and anvil Model K-7 ( Discontinued ) Graduation 0.05mm Range 0 - 50mm Throat depth 690mm Ø30mm flat contact point and anvil Custom order available  Optional Ø30, 40 and 50mm contact points and anvils are available.  Please specify material for contact point and anvil, either SK  material or aluminum. Specifications Model Graduation (mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Anvil Dia (mm) Measuring force less than (N) Dia (mm) Parallelism (µm) K-1 0.01 0 - 20 300 ±22 10 10 20 2.0 K-2 0.05 0 - 35 300 ±100 20 25 20 3.0 K-3 0.01 0 - 20 500 ±22 10 10 20 3.0 K-4 0.05 0 - 50 500 ±100 25 25 25 3.0 K-7 ( Discontinued ) 0.05 0 - 50 690 ±100 30 25 30 3.0 Dial Sheet Gauges ; Dimensions | HOME | Product Information | Thickness Gauges | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
