Dial Inside Gauge (U series)


Capable of continuously measuring comparatively large bores or inside wall surface
with a given measuring force using flexibility of the dial gauge.
Dial Inside Gauge (U series)
Model U-1
Graduation 0.01mm
Range 50 - 350mm
( Measuring range of dial gauge ; 5mm )

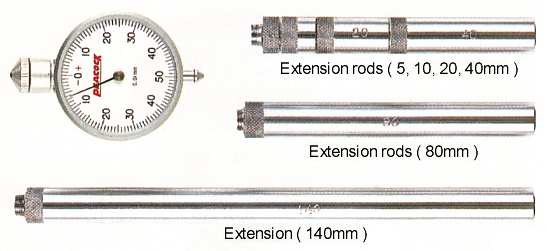

Replace the extension rods according to a measuring range 6 extension rods
U-1

Model U2HA Model U2HB
Graduation 0.01mm Graduation 0.01mm
Range 66 - 80mm Range 80 - 92mm
( Measuring range of dial gauge ; 4mm ) ( Measuring range of dial gauge ; 4mm )
With Magnetic Base
With Magnetic Base
The gauge proper can be secured to the measuring position by the magnet base.
U2HA, U2HB

Model U2FA Model U2FB
Graduation 0.01mm Graduation 0.01mm
Range 92 - 110mm Range 110 - 120mm
( Measuring range of dial gauge ; 5mm ) ( Measuring range of dial gauge ; 5mm )
With Magnetic Base
With Magnetic Base
The gauge proper can be secured to the measuring position by the magnet base.
U2FA, U2FB

Model U3HA Model U3HB
Graduation 0.01mm Graduation 0.01mm
Range 66 - 80mm Range 80 - 92mm
( Measuring range of dial gauge ; 4mm ) ( Measuring range of dial gauge ; 4mm )
With Magnetic Base
With Magnetic Base
The gauge proper can be secured to the measuring position by the magnet base.
With shorter pointer With shorter pointe
U3HA, U3HB


Specifications
Model Graduation
(mm)
Range
(mm)
Reading Indication error (µm) Backward
error
(µm)
Repeatability
(µm)
Measuring
force less
than (N)
revolution Whole
measuring
range
1/10 1/2 One Two
U-1 0.01 50 - 350 0 - 50 - 0 9 - }13 - }20 - - 2.0
U2HA 0.01 66 - 80 0 - 50 - 0 9 - }13 - }15 - - 1.4
U2HB 0.01 80 - 92 0 - 50 - 0 9 - }13 - }15 - - 1.4
U2FA 0.01 92 - 110 0 - 50 - 0 9 - }13 - }20 - - 2.0
U2FB 0.01 110 - 120 0 - 50 - 0 9 - }13 - }20 - - 2.0
U3HA 0.01 66 - 80 0 - 50 - 0 9 - }13 - }20 - - 1.4
U3HB 0.01 80 - 92 0 - 50 - 0 9 - }13 - }20 - - 1.4

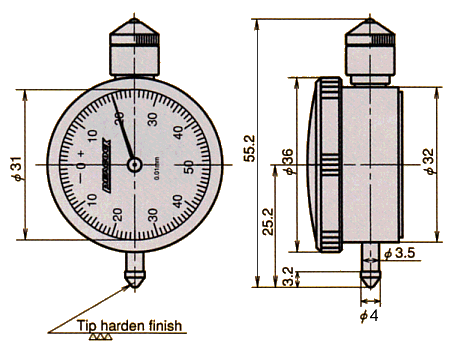

Dimensions; U-1

Dimensions ; U-1

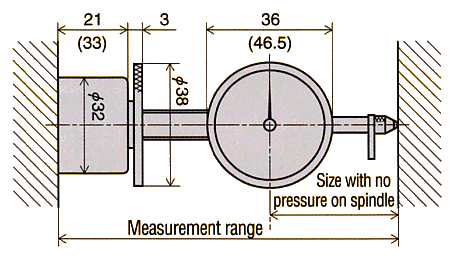

Dimensions; U2HA, U2HB, U2FA, U2FB, U3HA, U3HB

Dimensions ; U2HA, U2HB, U2FA, U2FB, U3HA, U3HB
( ) are U2FA, U2FB
