Angle Contact Points (XZ series)


The contact point is tilted in its moving direction by the cam, and it includes
two types; tilted to 45‹and 60‹.
The contact point is convenient for measurement on locations where it is
impossible to straightforwardly install the dial gauge and to use it for a jig.
Hold the stem when used.
Angle Contact Points ( Discontinued ) ( dial gauges supplied on request )
Model XZ-1
( Discontinued )
Range 1.2mm
Angle 45‹
XZ-1

Model XZ-2
( Discontinued )
Range 1.2mm
Angle 60‹
XZ-2

Specifications
Model Angle Range
( mm )
Moving distance
( mm )
Measuring force
less than ( N )
XZ-1
( Discontinued )
45‹ 1.2 5 1.4
XZ-2
( Discontinued )
60‹ 1.2 5 1.4
Angle 90‹ is available on request.

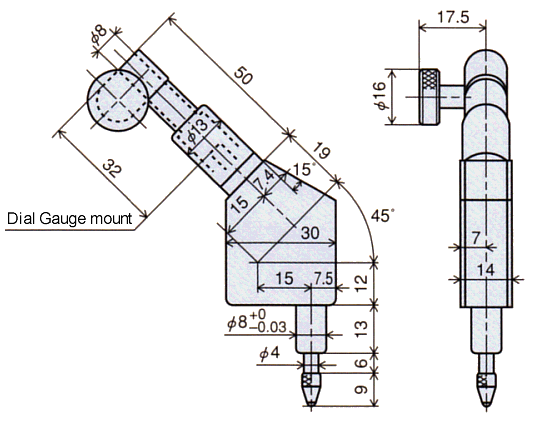

 Dimensions; XZ-1
Dimensions ; XZ-1

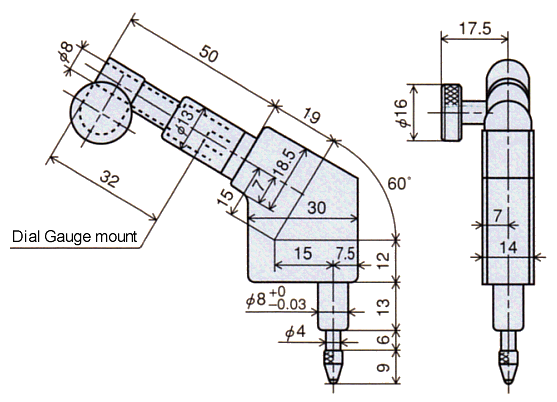

 Dimensions; XZ-2
Dimensions ; XZ-2
