 Economy-wise popular stand |
 |
 |
 |
The stand is designed for standard dial gauges and digital linear gauges and is rigid and
easy to work. |
|
 |
 |
| Specifications |
| Model |
Table surface |
Table size |
Effective
moving range |
Allowable
measuring depth |
Stem installed |
SIS-6C
( New ) |
Ceramic without grooves |
50mm diameter |
0 to about
100mm |
Approximately
62.5mm |
8mm dia. |
| SIS-7 |
Ground cast iron surface |
74×74mm |
0 to about
100mm |
Approximately
52mm |
8mm dia. |
| PDS-2 |
Ceramic with grooves |
100×100mm |
0 to about
100mm |
Approximately
60mm |
8mm dia. ( 20mm dia. when
split collar is removed ) |
| PDS-2F |
Ceramic without grooves |
100×100mm |
0 to about
100mm |
Approximately
60mm |
8mm dia. ( 20mm dia. when
split collar is removed ) |
Dimensions ( SIS-6C )

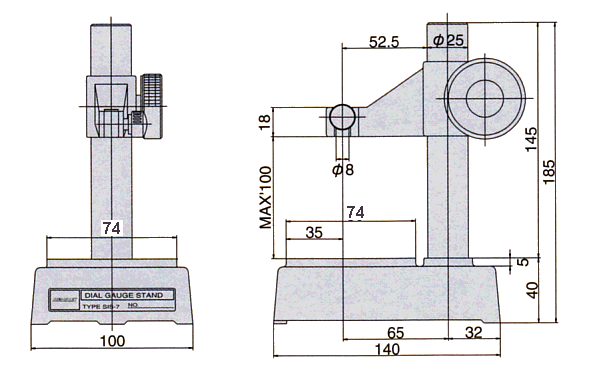

Dimensions ( SIS-7 )

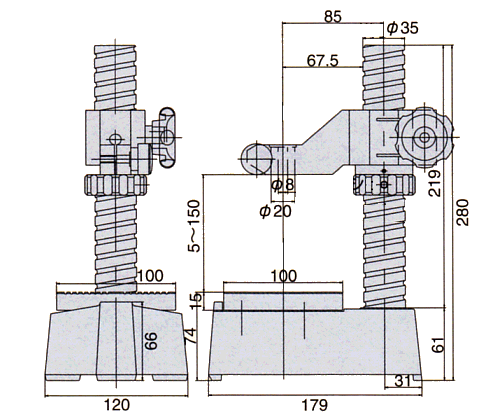

Dimensions ( PDS-2, PDS-2F )
|
| Page Top |
|
Stand designed for precision measurement of standard dial gauges, lever
dial gauges
and lever electric micrometers, rigid in construction and easy in fine
adjustment of
gauge indication by the original fine adjusting device. |
|
| Model |
SIS-4F |
< With fine adjustment >
( Dial Gauge and Pic Test Indicator are not furnished. ) |
|
Mounting example for Dial Gauge
( Ø8mm Stem )
 |
Mounting example for Pic Test Indicator
( Ø6mm Stem )
 |
| Specifications ( SIS-4F ) |
| Model |
Base ( mm ) |
Main column
( mm ) |
Support column
( mm ) |
Weight
( kg ) |
Included attachments |
| Height |
Length |
Width |
Diameter |
Length |
Diameter |
Length |
| SIS-4F |
46 |
130 |
90 |
25 |
250 |
16 |
240 |
5.2 |
1. for Dial Gauges
2. for Lever type Dial Indicators |
|
|
|
sis_4f.pdf
Design and specifications are subject to change without notice for future
improvement.
