Replaceable contact points (Screw pitch M2.5 P=0.45mm)

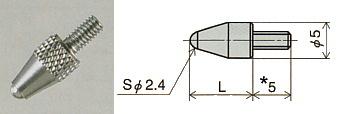

Ball Contact Point
Ball Contact Point
* Type X-107 = 4mm
Part No. L (mm) Ball
 X-1 9 Steel
 X-103 3.5 Steel
 X-105 5 Steel
 X-107 7.5 Steel
 X-112 12.5 Steel
 X-125 25 Steel
 XB-1 9 Carbide
 XB-115 15 Carbide
 XB-125 25 Carbide
 XB-130 30 Carbide
 XC-1 9 Ruby
 XC-125 25 Ruby

Ball Contact Point for Oil Proof type
Ball Contact Point for Oil Proof type
Part No. L (mm) Ball
 X-2 9 Steel
 XB-2 9 Carbide
 XC-2 9 Ruby
 X-2A 12 Steel
 XB-2A 12 Carbide

Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
XS-1 series
XS-1 series
Part No. L (mm) Material
 XS-1 8 SKS 3
 XS-105 5 SKS 3
 XS-110 10 SKS 3
 XS-115 15 SKS 3
 XS-120 20 SKS 3
 XS-125 25 SKS 3
 XS-130 30 SKS 3

Carbide Spherical Contact Point
Carbide Spherical Contact Point
Part No. L (mm) Material
XB-305 5 Carbide
XB-308 8 Carbide

Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
XS-2 series
XS-2 series
Part No. L (mm) Material
 XS-2 8 SKS 3
 XS-205 5 SKS 3
 XS-210 10 SKS 3
 XS-215 15 SKS 3
 XS-220 20 SKS 3
 XS-225 25 SKS 3
 XS-230 30 SKS 3

Carbide Flat Contact Point
Carbide Flat Contact Point
Part No. ƒÓD (mm) L (mm) Material
XB-405 5 5 Carbide
XB-406 4 6 Carbide
XB-408 5 8 Carbide

Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
XS-4 series
XS-4 series
Part No. Material
XS-4 SKS 3
Carbide Plain Contact Point

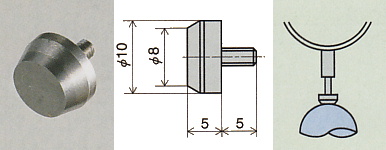

Carbide Plain Contact Point ; XB-506
Part No. Material
XB-506 Carbide

Carbide Plain Contact Point
Carbide Plain Contact Point ; XB-505
Part No. Material
XB-505 Carbide


Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
XS-5 series
XS-5 series
Part No. L (mm) Material
 XS-5 5 SKS 3
 XS-510 10 SKS 3
Carbide Flat-Seated Contact Point

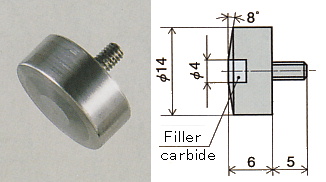

Carbide Flat-Seated Contact Point ; XB-605
Part No. Material
XB-605 Carbide


Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)

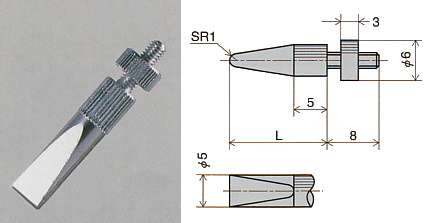

XS-3 series
XS-3 series
Part No. L (mm) Material
 XS-3 25 SKS 3
 XS-310 10 SKS 3
 XS-315 15 SKS 3
 XS-320 20 SKS 3
 XS-330 30 SKS 3

XS-6 series
XS-6 series
Part No. Material
XS-6 SKS 3

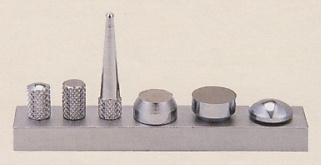

Contact point set XS
Contact point set ; XS
XS is provided with setting table for XS-1 to XS-6 contact point, and a case.
Each type sold separately.
Part No. Material
XS SKS 3


Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
Needle Contact Point XT-2C

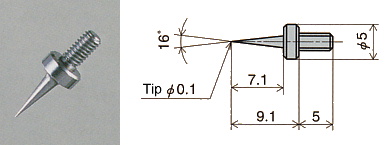

Needle Contact Point ; XT-2C
Part No. Material

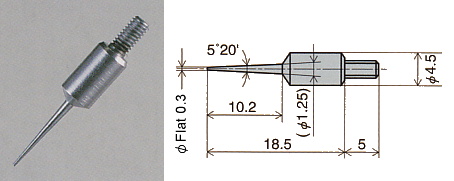

XT-2C SK 3

Needle Contact Point XT-3
Needle Contact Point ; XT-3
Part No. Material
XT-3 SK 3

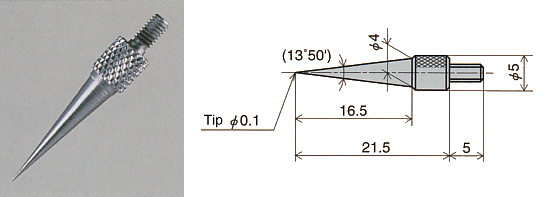

Needle Contact Point XT-4
Needle Contact Point ; XT-4
Part No. Material
XT-4 SK 3

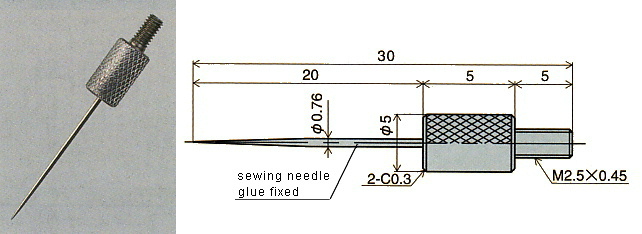

Needle Contact Point XT-5
Needle Contact Point ; XT-5
Part No. Material
XT-5 sewing needle


Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
Needle Type Contact Point
Needle Type Contact Point
Part No. Ø D (mm) L (mm) Material Part No. Ø D (mm) L (mm) Material
XB-800 1 2 Carbide XS-800 1 2 SKS 3
XB-801 1.5 12 Carbide XS-801 1.5 12 SKS 3
XB-802 2 7 Carbide XS-802 2 7 SKS 3
XB-803 2 12 Carbide XS-803 2 12 SKS 3
XB-804 1 20 Carbide XS-804 1 20 SKH
XB-805 1.5 20 Carbide XS-805 1.5 20 SKH
XB-806 2 20 Carbide XS-806 2 20 SKH
XB-807 1 40 Carbide XS-807 1 40 SKH
XB-808 1.5 40 Carbide XS-808 1.5 40 SKH
XB-809 2 40 Carbide XS-809 2 40 SKH


Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
Knife-edge Contact Point
Knife-edge Contact Point
Part No. L (mm) Material
XS-710 10 SKS 3
XS-715 15 SKS 3
XS-720 20 SKS 3
XS-725 25 SKS 3
XS-730 30 SKS 3

Carbide Knife-edge Contact Point

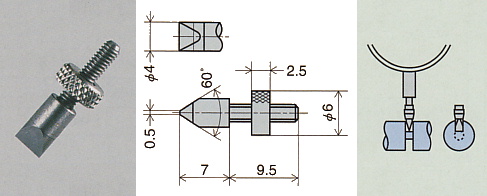

Carbide Knife-edge Contact Point ; XB-707
Part No. Material
XB-707 Carbide


Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
Roller Contact Point SH-1

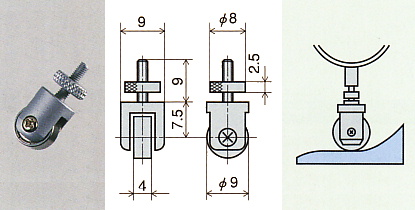

Roller Contact Point ; SH-1
Part No. Material
SH-1 SUJ 2

Roller Contact Point SH-2
Roller Contact Point ; SH-2
Part No. Material
SH-2 SUJ 2

Roller Contact Point SH-3 NEW
Roller Contact Point ; SH-3
Part No. Material
SH-3 Polyacetal Resin



Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
Offset Contact Point X-8

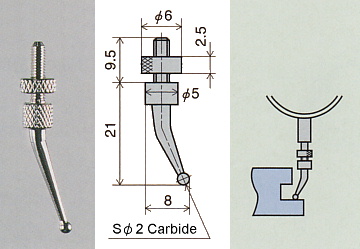

Offset Contact Point ; X-8
Part No. Ball
X-8 Carbide


Page Top |

Replaceable contact points (Screw pitch M2.5 P=0.45mm)
Special Contact Point
X-3 X-4, X-5, X-6 X-7
Special Contact Point ; X-3 Special Contact Point ; X-4, X-5, X-6 Special Contact Point ; X-7
Part No. Material Remark
X-3 NSB Anti-magnetic
X-4 Copper
X-5 Bakelite
X-6 Teflon
X-7 Teflon Flat seated

Special Contact Point X-12

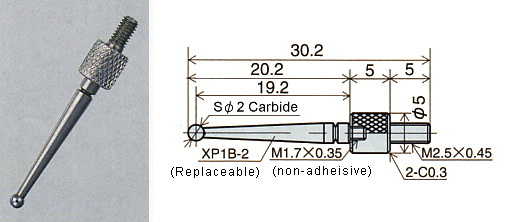

Special Contact Point ; X-12
Part No. Ball
X-12 Carbide
