Common Specifications of Linear Gauges


Common Specifications of Linear Gauges
Items Common specifications
Type of gauges Output signal (A) DL-2S / D-5S / D-10S / D-20S / D-50S / D-100S / D-10SS
Output signal (B) DL-2 / D-5 / D-10 / D-20 / D-50 / D-100 / D-5UZ
Displacement transducer type Glass linear scale (scale pitch 20µm) (D-10HS: pitch 8µm)
Power supply {12DCV ±5% (consumed current 40mA)
Signal cable length 2m (2, 3, 5 and 10m extension cables are available)
4 core shied cable & oil proof type
Output connector,
Receiver connector
Gauge side (R03-PB8M) Counter side (R03-R8F) Tajimi connectors
Output signal (A) 0.5µm /
1µm resolution
2 phase signal with 90º phase difference,
20µm pitch, sinusoidal wave-form
Output signal (B) 5µm /
10µm resolution
2 phase signal with 90º phase difference,
20µm pitch, approximate sinusoidal wave-form
Output signal (C) 5µm /
10µm resolution
2 phase signal with 90º phase difference,
20µm pitch, square wave-form (gauges: DN-10 / DN-20)
Output signal (D) 0.1µm
resolution
2 phase signal with 90º phase difference,
8µm pitch, sinusoidal wave-form (gauges: D-10HS)
Operating temperature 0 - 40ºC (except for high temperature type)
Output Frequency 0 - 50Kz
Contact point M2.5 × 0.45 (contact points for dial gauge can be used)

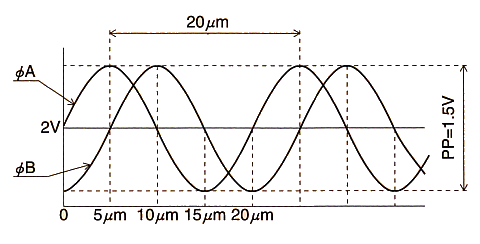

Output signal (A) wave-form (1µm resolution)
Output signal (A) wave-form (1m resolution)
After multiplying 1µm pulse by 5 where 1µm = 1 generated pulse.

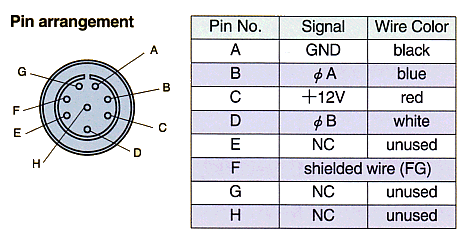

Signal Connector R03-PB8M (manufactured by Tajimi)
Signal Connector R03-PB8M (manufactured by Tajimi)
