D/A Converter
Conversion of Digital Output to Analog Signals
;Discontinued

* When DA-4 is connected to a recorder, the resulting analog figure can provide    a continuous recording. * Three convertible settings cover the entire testing range.

D/A Converter

Specifications
Model	DA-4

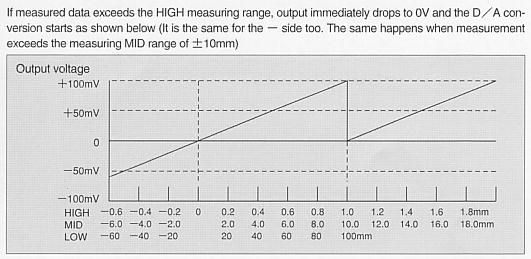

Resolution and range (BCD output and 3 digit input can be shifted)	Range	Measuring range	Resolution	Output voltage
	LOW	Full scale ±99.9	0.1mm	FS = ±100mV
	MID	Full scale ±9.99	0.01mm
	HIGH	Full scale ±0.999	0.001mm
Accuracy (straightness of output signal)	Full scale × 0.3%
Output impedance	Approximately 100Ω
Monitor (analog meter)	Monitors the relationship between displacement and D/A conversion output
Number of DA steps	Full scale ±1000 steps
Output terminal	Terminal's output on the back panel (T-375-12) SATO
Power supply	Operated by power supplied from a counter (+12V 80mA)
DA conversion speed	Less than 2msec
Operating temperature	0 - 40ºC / storage at -10 to 50ºC
Outer dimensions	200(W) × 230(D) × 55(H) mm
Weight	2.2kg
Accessories	* BCD signal cable (40cm) ---------- 1 pc. * Plate for mounting to counter ------ 2 pcs.
Options	* Making DA output into ±1V full scale (DA-4V1) * Making DA output into ±10V full scale (DA-4V10) * Recorder connecting cable -------- 1.5m (Usually attached to a recorder)
Applicable counters	* C-5, C-5S ;Discontinued (Only stock is supplied)    CP-5, CP-5S ;Discontinued * C-5SS ;Discontinued    C-7HS, CM-5B   (Cable for ±attachment should be changed. Notify Peacock at the time of purchase.)
* Output is made within the measuring range of the linear gauge   (example: 50mV at 50mm displacement in the LOW measuring range of 50mm)

DA-4: Dimensions

---
