3 axes Counter with Printer
XYZ-3B, XYZ-3 ; Discontinued

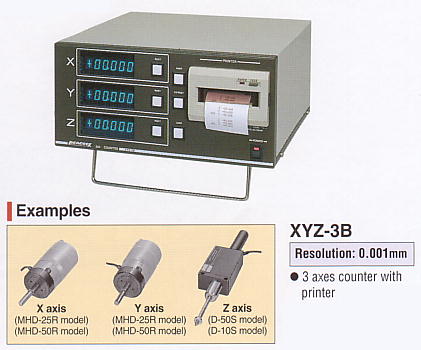

| * It can measure in 3 axes (X, Y & Z axes) with a built-in printer (XYZ-3B). |
 |
3 axes Counter with Printer
| Specifications | |||
| Model | XYZ-3B | ||
| Resolution | 0.001mm (X, Y, Z axes) | ||
| Display digits | 5 digits (0.000 - ±99.999) Fluorescent display tube | ||
| Quantizing error | ± 1 count | ||
| Number of display axes | 3 channels | ||
| Data output | RS-232C (D-Sub25P) | ||
| Recording paper | Thermal paper 58(W) × 38(D) mm (Juiou Seishi TP-50KS-4A58mm) |
||
| Power supply | AC100V (90V - 110V) 50/60Hz | ||
| Weight | 9kg | ||
| Outer dimension | 350(W) × 270(D) × 140(H) mm | ||
| Compatible linear gauges | X axis | Y axis | Z axis |
| Digital micrometer | Digital linear gauge | ||
| MHD-25R (25mm) MHD-50R (50mm) |
D-5S, D-10S, D-20S, D-50S |
||
| Functions | * External reset terminal (for Z axis only) * External print-out command terminal * All reset button (including index No.) |
||

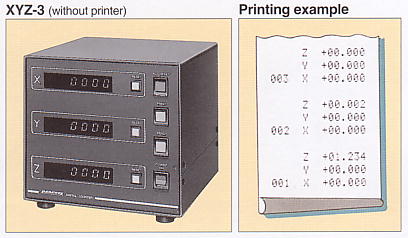

| Options | * Foot switch for external memory (FW-1) * Three-axes counter without built-in printer (XYZ-3) |
||
| * In case connecting digital linear gauges to both X and Y-axis, please
specify when ordering. |
|||
 |
|||
