Parts Drawings ; Cylinder Gauges


Cylinder Gauge Model CC-02 CC-01 CC-1 CC-2 CC-3C CC-4 CC-5 CC-6

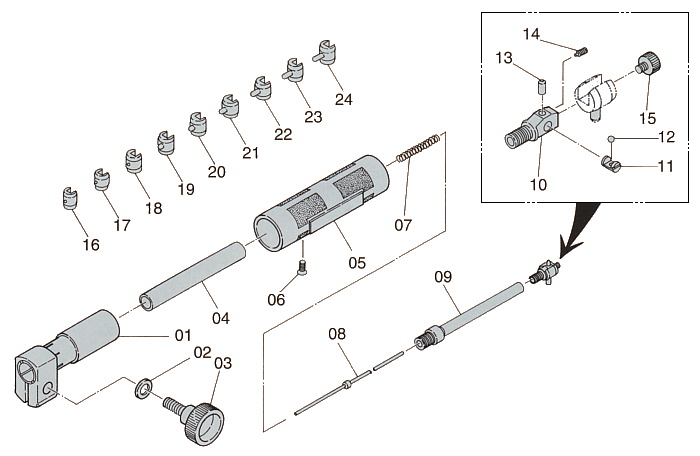

Parts Drawings ; CC-02
01 Indicator Holder 09 * Sleeve A 17 Feeler 6.5mm
02 Washer 10 * Head 18 Feeler 7.0mm
03 Knob Screw 11 Race 19 Feeler 7.5mm
04 * Sleeve B 12 Transmission Ball 20 Feeler 8.0mm
05 * Grip 13 Contact Point 21 Feeler 8.5mm
06 * Set Screw for Grip ( S-027 ) 14 Guide Screw 22 Feeler 9.0mm
07 Coil Spring 15 Lock Screw for Feeler 23 Feeler 9.5mm
08 Spindle ( with Spindle Collar ) 16 Feeler 6.0mm 24 Feeler 10.0mm
Main parts for Body ( part no. 10, 11, 12, 13, 14, 15 ) can be sold as a set. ( Head only for CC-02 )
Parts no. 02 and 03 can be sold as a set.
* mark are not for sell.

Page Top |

Cylinder Gauge Model CC-01 CC-02 CC-1 CC-2 CC-3C CC-4 CC-5 CC-6

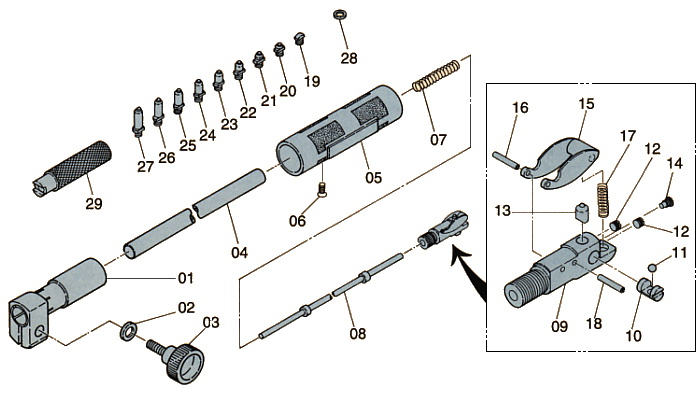

Parts Drawings ; CC-01
01 Indicator Holder 11 Transmission Ball 21 Feeler 12mm
02 Washer 12 Set Screw for Transmission Ball ( S-049 ) 22 Feeler 13mm
03 Knob Screw 13 Contact Point 23 Feeler 14mm
04 * Sleeve 14 Guide Screw 24 Feeler 15mm
05 * Grip 15 Guide ( with Guide Bush ) 25 Feeler 16mm
06 * Set Screw for Grip ( S-023 ) 16 Rivet 26 Feeler 17mm
07 Coil Spring 17 Return Spring 27 Feeler 18mm
08 Spindle ( with Spindle Collar ) 18 Check Pin 28 Washer 0.5mm
09 * Head 19 Feeler 10mm 29 Spanner
10 Race 20 Feeler 11mm
Main parts for Body ( part no. 09, 10, 11, 12, 13, 14, 15, 16, 17, 18 ) can be sold as a set. ( Head only for CC-01 )
Parts no. 02 and 03 can be sold as a set.
* mark are not for sell.

Page Top |

Cylinder Gauge Model CC-1 CC-02 CC-01 CC-2 CC-3C CC-4 CC-5 CC-6

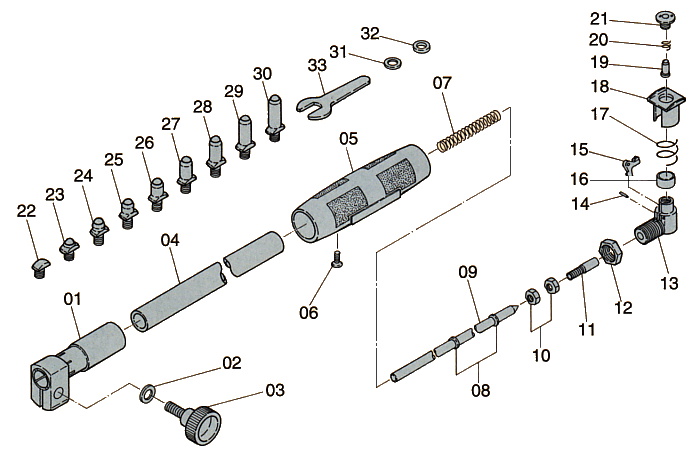

Parts Drawings ; CC-1
01 Indicator Holder 12 Hex Nut 23 Feeler 20mm
02 Washer 13 * Head 24 Feeler 22mm
03 Knob Screw 14 * Transmission Pin 25 Feeler 24mm
04 * Sleeve 15 * Transmission 26 Feeler 26mm
05 * Grip 16 * Collar 27 Feeler 28mm
06 * Set Screw for Grip ( S-021 ) 17 Return Spring 28 Feeler 30mm
07 Coil Spring 18 Guide 29 Feeler 32mm
08 Spindle Collar ( with E type Stop Ring ) 19 Contact Point 30 Feeler 34mm
09 Spindle Rod 20 Buffer Spring 31 Washer 0.5mm
10 Stop Nut 21 Lock Nut 32 Washer 1mm
11 Spindle 22 Feeler 18mm 33 Spanner
Main parts for Body ( part no. 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 ) can be sold as a set.
( Head only for CC-1 )
Parts no. 02 and 03 can be sold as a set.
Parts no. 14 and 15 can be sold as a set.
* mark are not for sell.

Page Top |

Cylinder Gauge Model CC-2 CC-02 CC-01 CC-1 CC-3C CC-4 CC-5 CC-6
Parts Drawings ; CC-2
01 Indicator Holder 12 Hex Nut 23 Guide
02 Washer 13 * Head 24 Feeler 35mm
03 Knob Screw 14 Feeler Lock Nut 25 Feeler 40mm
04 * Sleeve 15 Contact Point 26 Feeler 45mm
05 * Grip 16 Buffer Spring 27 Feeler 50mm
06 * Set Screw for Grip ( S-021 ) 17 Transmission 28 Feeler 55mm
07 Coil Spring 18 Transmission Pin 29 Feeler 60mm
08 Spindle Collar ( with E type Stop Ring ) 19 * Head Cover 30 Washer 1mm
09 Spindle Rod 20 * Set Screw for Head Cover ( S-008 ) 31 Washer 2mm
10 Stop Nut 21 Set Screw for Guide ( S-042 ) 32 Washer 3mm
11 Spindle 22 Return Spring
Main parts for Body ( part no. 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 ) can be sold as a set.
( Head only for CC-2 )
Parts no. 02 and 03 can be sold as a set.
Parts no. 17 and 18 can be sold as a set.
* mark are not for sell.

Page Top |

Cylinder Gauge Model CC-3C CC-02 CC-01 CC-1 CC-2 CC-4 CC-5 CC-6
Parts Drawings ; CC-3C
01 Indicator Holder 14 Nut ( Feeler Lock Nut ) 27 Feeler 55mm
02 Washer 15 Contact Point 28 Feeler 60mm
03 Knob Screw 16 Buffer Spring 29 Feeler 65mm
04 * Sleeve 17 Transmission 30 Feeler 70mm
05 * Grip 18 Transmission Pin 31 Feeler 75mm
06 * Set Screw for Grip ( S-021 ) 19 * Head Cover 32 Feeler 80mm
07 Coil Spring 20 * Set Screw for Head Cover ( S-008 ) 33 Feeler 85mm
08 Spindle Collar ( with E type Stop Ring ) 21 * Head B 34 Feeler 90mm
09 Spindle Rod 22 * Lock Screw for Head ( S-025 ) 35 Feeler 95mm
10 Stop Nut 23 Return Spring 36 Feeler 100mm
11 Spindle 24 Guide 37 Washer 1mm
12 Hex Nut 25 Set Screw for Guide ( S-042 ) 38 Washer 2mm
13 * Head A 26 Feeler 50mm 39 Washer 3mm
40 Adapter
Main parts for Body ( part no. 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25 ) can be sold as a set.
( Head only for CC-3C )
Parts no. 02 and 03 can be sold as a set.
Parts no. 17 and 18 can be sold as a set.
* mark are not for sell.

Page Top |

Cylinder Gauge Model CC-4 CC-02 CC-01 CC-1 CC-2 CC-3C CC-5 CC-6
Parts Drawings ; CC-4
01 Indicator Holder 13 * Head A 25 Set Screw for Guide ( S-043 )
02 Washer 14 * Set Screw for Side Cover ( S-017 ) 26 Feeler 100mm
03 Knob Screw 15 * Side Cover 27 Feeler 110mm
04 * Sleeve 16 Transmission ( with Transmission Pin ) 28 Feeler 120mm
05 * Grip 17 Nut ( Feeler Lock Nut ) 29 Feeler 130mm
06 * Set Screw for Grip ( S-028 ) 18 * Head B 30 Feeler 140mm
07 Coil Spring 19 * Lock Screw for Head ( S-207 ) 31 Feeler 150mm
08 Spindle Rod ( with Spindle Collar ) 20 Contact Point 32 Feeler 160mm
09 * Joint 21 Buffer Spring 33 Washer 1mm
10 Stop Nut 22 Lock Nut 34 Washer 2mm
11 Spindle 23 Return Spring 35 Washer 3mm
12 Hex Nut 24 Guide 36 Washer 4mm
Main parts for Body ( part no. 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25 ) can be sold as a set.
( Head only for CC-4 )
Parts no. 02 and 03 can be sold as a set.
* mark are not for sell.

Page Top |

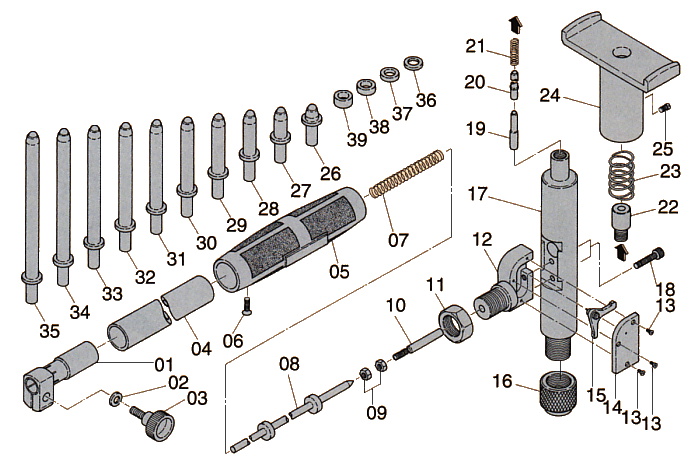

Cylinder Gauge Model CC-5 CC-02 CC-01 CC-1 CC-2 CC-3C CC-4 CC-6
Parts Drawings ; CC-5
01 Indicator Holder 14 * Side Cover 27 Feeler 170mm
02 Washer 15 Transmission ( with Transmission Pin ) 28 Feeler 180mm
03 Knob Screw 16 Nut ( Feeler Lock Nut ) 29 Feeler 190mm
04 * Sleeve 17 * Head B 30 Feeler 200mm
05 * Grip 18 * Lock Screw for Head ( S-208 ) 31 Feeler 210mm
06 * Set Screw for Grip ( S-031 ) 19 Transmission Rod 32 Feeler 220mm
07 Coil Spring 20 Contact Point 33 Feeler 230mm
08 Spindle Rod ( with Spindle Collar ) 21 Buffer Spring 34 Feeler 240mm
09 Stop Nut 22 Lock Nut 35 Feeler 250mm
10 Spindle 23 Return Spring 36 Washer 1mm
11 Hex Nut 24 Guide 37 Washer 2mm
12 * Head A 25 Set Screw for Guide ( S-043 ) 38 Washer 3mm
13 * Set Screw for Side Cover ( S-017 ) 26 Feeler 160mm 39 Washer 4mm
Main parts for Body ( part no. 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25 ) can be sold as a set.
( Head only for CC-5 )
Parts no. 02 and 03 can be sold as a set.
* mark are not for sell.

Page Top |

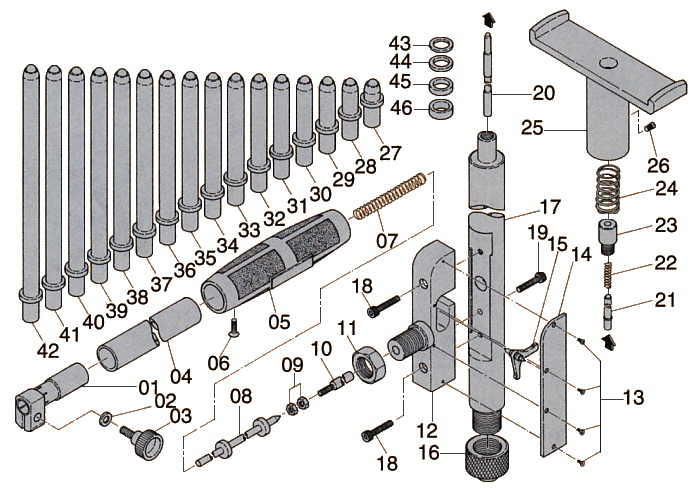

Cylinder Gauge Model CC-6 CC-02 CC-01 CC-1 CC-2 CC-3C CC-4 CC-5
Parts Drawings ; CC-6
01 Indicator Holder 16 Nut ( Feeler Lock Nut ) 31 Feeler 290mm
02 Washer 17 * Head B 32 Feeler 300mm
03 Knob Screw 18 * Lock Screw for Head A ( S-209 ) 33 Feeler 310mm
04 * Sleeve 19 * Lock Screw for Head B ( S-208 ) 34 Feeler 320mm
05 * Grip 20 Transmission Rod 35 Feeler 330mm
06 * Set Screw for Grip ( S-031 ) 21 Contact Point 36 Feeler 340mm
07 Coil Spring 22 Buffer Spring 37 Feeler 350mm
08 Spindle Rod ( with Spindle Collar ) 23 Lock Nut 38 Feeler 360mm
09 Stop Nut 24 Return Spring 39 Feeler 370mm
10 Spindle 25 Guide 40 Feeler 380mm
11 Hex Nut 26 Set Screw for Guide ( S-043 ) 41 Feeler 390mm
12 * Head A 27 Feeler 250mm 42 Feeler 400mm
13 * Set Screw for Side Cover ( S-017 ) 28 Feeler 260mm 43 Washer 1mm
14 * Side Cover 29 Feeler 270mm 44 Washer 2mm
15 Transmission ( with Transmission Pin ) 30 Feeler 280mm 45 Washer 3mm
46 Washer 4mm
Main parts for Body ( part no. 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26 ) can be sold as a set.
( Head only for CC-6 )
Parts no. 02 and 03 can be sold as a set.
* mark are not for sell.
