 Standardization! To meet your needs.
The use of Cylinder Gauge enables an easy and precise
Measurement of the large inner diameter of SPLINE.
Dial gauge is not furnished and supplied only on request.
Suitable dial gauges are 17Z, 57B (0.01mm) and 15Z, 5F (0.001mm). |
 Cylinder Gauge for measuring the Large diameter of SPLINE |
 |
* Dimensioned the size of
contact point. |
Head details
Let us have the information of the
diameter of SPLINE for measurement.
SPECIAL GAUGES ARE AVAILABLE
in different measurement ranges and
modified Contact Point according to
your specifications. |
|
| Specifications ; CC-1HB Series |
| Model |
Large diameter
range (mm) |
Effective
measuring
range (mm) |
Wide range
accuracy (µm) |
Adjacent
error (µm) |
Repeated
accuracy (µm) |
Rod (mm) |
Washer (mm) |
| CC-124HB |
23.5～26.0 |
1.2 |
5 |
2 |
2 |
24 |
0.5, 1.0 |
| CC-126HB |
25.5～28.0 |
1.2 |
5 |
2 |
2 |
26 |
0.5, 1.0 |
| CC-128HB |
27.5～30.0 |
1.2 |
5 |
2 |
2 |
28 |
0.5, 1.0 |
| CC-130HB |
29.5～32.0 |
1.2 |
5 |
2 |
2 |
30 |
0.5, 1.0 |
| CC-132HB |
31.5～34.0 |
1.2 |
5 |
2 |
2 |
32 |
0.5, 1.0 |
| CC-134HB |
33.5～36.0 |
1.2 |
5 |
2 |
2 |
34 |
0.5, 1.0 |
| CC-136HB |
35.5～38.0 |
1.2 |
5 |
2 |
2 |
36 |
0.5, 1.0 |
| CC-138HB |
37.5～40.0 |
1.2 |
5 |
2 |
2 |
38 |
0.5, 1.0 |
| CC-140HB |
39.5～42.0 |
1.2 |
5 |
2 |
2 |
40 |
0.5, 1.0 |
| CC-142HB |
41.5～44.0 |
1.2 |
5 |
2 |
2 |
42 |
0.5, 1.0 |
| CC-144HB |
43.5～46.0 |
1.2 |
5 |
2 |
2 |
44 |
0.5, 1.0 |
| CC-146HB |
45.5～48.0 |
1.2 |
5 |
2 |
2 |
46 |
0.5, 1.0 |
|
|

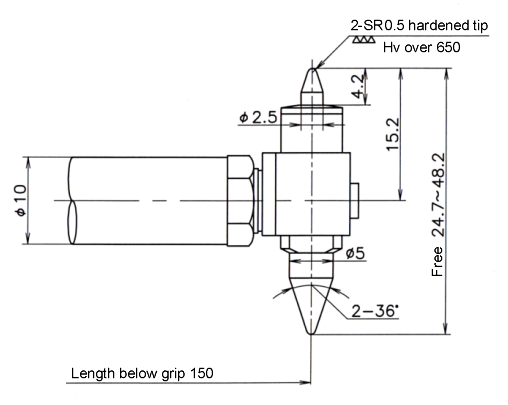

Dimensions ; CC-1HB Series
|
| Specifications ; CC-2HB Series |
| Model |
Large diameter
range (mm) |
Effective
measuring
range (mm) |
Wide range
accuracy (µm) |
Adjacent
error (µm) |
Repeated
accuracy (µm) |
Rod (mm) |
Washer (mm) |
| CC-245HB |
44.5～50.5 |
1.2 |
5 |
2 |
2 |
45 |
0.5, 1.0, 2.0, 3.0 |
| CC-250HB |
49.5～55.5 |
1.2 |
5 |
2 |
2 |
50 |
0.5, 1.0, 2.0, 3.0 |
| CC-255HB |
54.5～60.5 |
1.2 |
5 |
2 |
2 |
55 |
0.5, 1.0, 2.0, 3.0 |
| CC-260HB |
59.5～65.5 |
1.2 |
5 |
2 |
2 |
60 |
0.5, 1.0, 2.0, 3.0 |
| CC-265HB |
64.5～70.5 |
1.2 |
5 |
2 |
2 |
65 |
0.5, 1.0, 2.0, 3.0 |
| CC-270HB |
69.5～75.5 |
1.2 |
5 |
2 |
2 |
70 |
0.5, 1.0, 2.0, 3.0 |
| CC-275HB |
74.5～80.5 |
1.2 |
5 |
2 |
2 |
75 |
0.5, 1.0, 2.0, 3.0 |
| CC-280HB |
79.5～85.5 |
1.2 |
5 |
2 |
2 |
80 |
0.5, 1.0, 2.0, 3.0 |
|
|

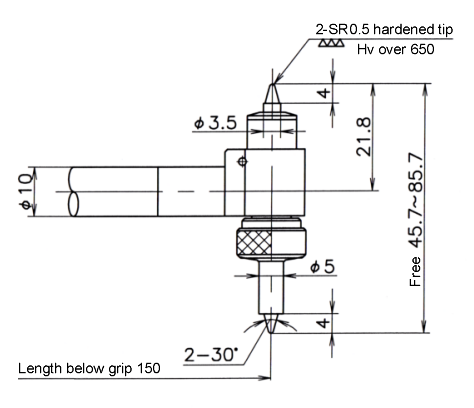

Dimensions ; CC-2HB Series
|
|
Design and specifications are subject to change without notice for future
improvement.
