Standard Dial Gauges; 0.01mm

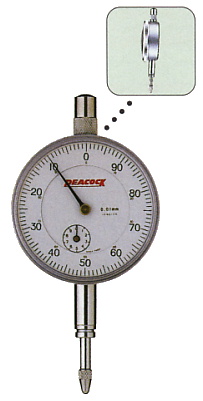

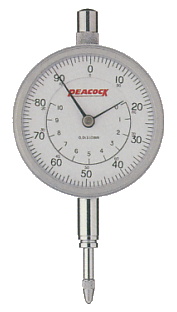

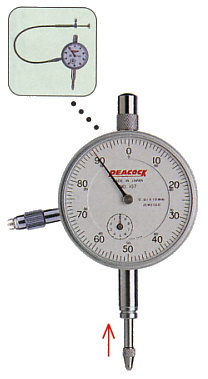

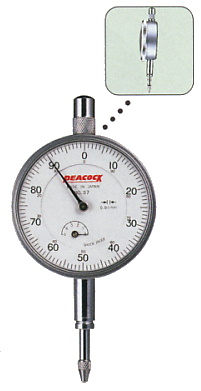

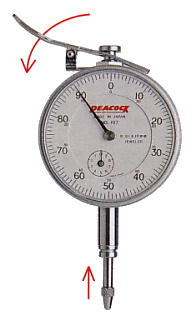

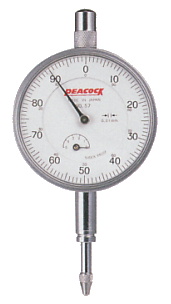

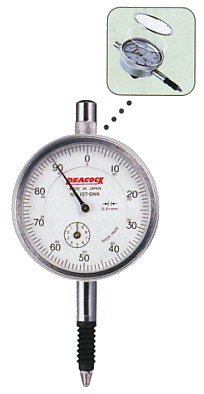

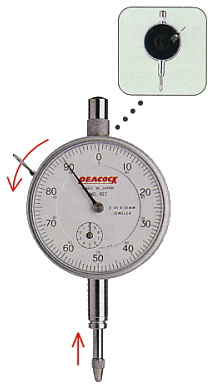

JIS B 7503 : 2017 Dial Gauges are widely used manufacturing plants. The stem, made of SK quench hardened with strength, is malfunction-free due to fastening. The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle. The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction. The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way. Standard Dial Gauges; 0.01mm Model 107-HG High Precision Type Graduation 0.01mm Range 10mm Indication error 12µm Hysteresis error 2.5µm Includes accuracy certification Lug back Model 107-DX Graduation 0.01mm Range 10mm Durable type ( Spindle Ø5mm ) Lug back Model 107 Graduation 0.01mm Range 10mm Lug back Model 107F Graduation 0.01mm Range 10mm Flat back Model 107-SWA Graduation 0.01mm Range 10mm Oil-proof type Flat crystal Contact point ( X-2A ) Lug back Model 107-BL Graduation 0.01mm Range 10mm Spindle pull-up back lever Lug back Model 107-LL Graduation 0.01mm Range 10mm Spindle lifting lever ( LL-1 ) Lug back Model 107F-RE Graduation 0.01mm Range 10mm Spindle pull-up release    ( RE-1 ) 280 mm long Flat back Model 107F-T Graduation 0.01mm Range 10mm Reversed dial Flat back Model 107-E Graduation 0.01mm Range 10mm Low-measuring force    ( initial pressure 0.4N ) Lug back Model 17 Graduation 0.01mm Range 1mm Balanced dial Lug back Model 107W Graduation 0.01mm Range 10mm Tow center pointers   (The hand is long enough to   facilitate easy reading of   measured values.) Lug back 式 57-SWA Graduation 0.01mm Range 5mm Oil-proof type Flat crystal Contact point ( X-2 ) Lug back Model 57 Graduation 0.01mm Range 5mm Lug back Model 57F Graduation 0.01mm Range 5mm Flat back Model 57B Graduation 0.01mm Range 5mm Balanced dial Flat back Specifications Model Graduation (mm) Range (mm) Reading Indication error (MPE) (µm) Hysteresis error (µm) Repeatability (µm) Measuring force less than (N) Revolution Whole measuring range 1/10 1/2 One 107-HG 0.01 10 ±0 -50- 100 4 7 8 12 2.5 3 1.4 107-DX 0.01 10 ±0 -50- 100 5 9 10 15 3 3 1.4 107 0.01 10 ±0 -50- 100 5 9 10 15 3 3 1.4 107F 0.01 10 ±0 -50- 100 5 9 10 15 3 3 1.4 107-SWA 0.01 10 ±0 -50- 100 5 9 10 15 3 3 1.4 107-BL 0.01 10 ±0 -50- 100 5 9 10 15 3 3 1.4 107-LL 0.01 10 ±0 -50- 100 5 9 10 15 3 3 1.4 107F-RE 0.01 10 ±0 -50- 100 5 9 10 15 3 3 1.4 107F-T 0.01 10 ±100 -50- 0 5 9 10 15 3 3 1.4 107-E 0.01 10 ±0 -50- 100 5 9 10 15 3 3 * 0.4 17 0.01 1 0 -50- 0 5 8 8 8 3 3 1.4 107W 0.01 10 ±0 -50- 100 5 9 10 15 3 3 1.4 57-SWA 0.01 5 ±0 -50- 100 5 9 10 12 3 3 1.4 57 0.01 5 ±0 -50- 100 5 9 10 12 3 3 1.4 57F 0.01 5 ±0 -50- 100 5 9 10 12 3 3 1.4 57B 0.01 5 0 -50- 0 5 9 10 12 3 3 1.4 * initial pressure 0.4N Replaceable contact points Dimensions (mm) Model A B C D E F G H I J 107-HG 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0 107-DX 65 50.7 17 55.7 14.5 20 5 7 52 8.0 107 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0 107F 65 41.5 18.5 53 14.5 -- 4 6.5 49 8.0 107-SWA 68 41.5 17.5 55 15 20 4 6.5 49 8.0 107-BL 65 41.5 18.5 53 14.5 4 6.5 49 8.0 107F-RE 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0 107-LL 65 -- 18.5 53 14.5 20 4 6.5 49 8.0 107W 65 41.5 17.5 55 17 20 4 6.5 49 8.0 107F-T 65 41.5 18.5 53 14.5 -- 4 6.5 49 8.0 107-E 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0 17 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0 57-SWA 65 41.5 18.5 55 15 20 4 6.5 49 8.0 57 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0 57F 65 41.5 18.5 53 14.5 -- 4 6.5 49 8.0 57B 65 41.5 18.5 53 14.5 -- 4 6.5 49 8.0 | HOME | Product Information | Dial Gauge | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
