| Constant Pressure Thickness Gauge; FFG-11, FFA-11 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
| Common fabric (fuzzy material). |
L 1096 |
FFG-11, FFA-11 |
| Adhesive interlined cloth (common knit). |
L 1086 |
FFG-11, FFA-11 |
| Stockinet (common knit). |
L 1018 |
FFG-11, FFA-11 |
|
|
|

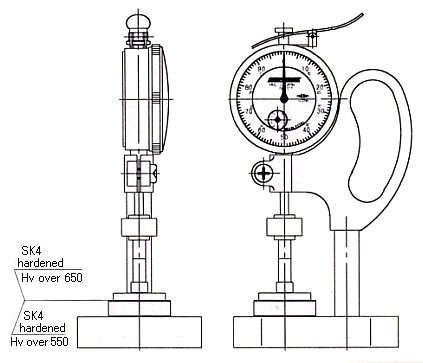

 Specifications Compact type FFG-11 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFG-11 |
0.01 |
10 |
±22 |
24 |
25.2
( 5cm² ) |
30 |
less than 0.35
( less than 35 ) |
20 |
|
| Page Back |

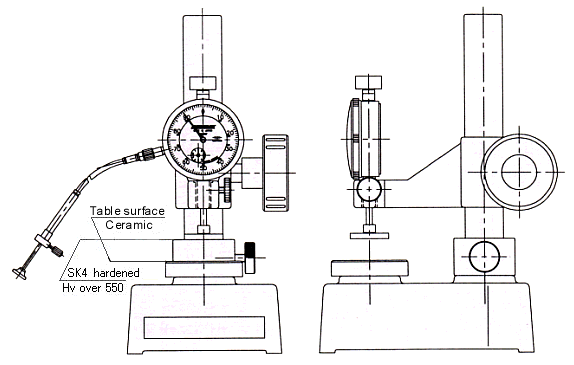

| Specifications Stand type FFA-11 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-11 |
0.01 |
10 |
±20 |
55 |
25.2
( 5cm² ) |
50 |
less than 0.35
( less than 35 ) |
20 |
|
