Constant Pressure Thickness Gauge

HOME > Product Information > Thickness Gauges

Constant Pressure Thickness Gauge

( Special Order )

	Constant Pressure Thickness Gauges comply with JIS standard and arrive ready to measure film, artificial leather, urethane and a wide variety of sheet material.
	Three types (FFG. FFA. FFD series) are available to meet your measurement.

Compact type FFG Series ( PAT. No. 3073347 )

Measuring material	JIS. NO	Applied Model
Shrink package film.	Z 1709	FFG-1
Polyethylene package film.	Z 1702	FFG-1
Ethylene film.	K 6783	FFG-1
Polyvinyl chloride film.	K 6732	FFG-2
Sheet rubber.	K 6328	FFG-4
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD less) Contact Point ø5mm	K 6250A	FFG-5
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD less) Contact Point ø8mm	K 6250A	FFG-6
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD over) Contact Point ø5mm	K 6250A	FFG-7
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD over) Contact Point ø8mm	K 6250A	FFG-8
Urethane form.	K 6402	FFG-9
Common fabric (fuzzy material).	L 1096	FFG-11
Adhesive interlined cloth (common knit).	L 1086	FFG-11
Stockinet (common knit).	L 1018	FFG-11
Unwoven / interlined cloth.	L 1085	FFG-12
Adhesive interlined cloth (non-woven).	L 1086	FFG-12

Specifications Compact type FFG Series

Model

Graduation
(mm)

Range
(mm)

Indicator error
(µm)

Throat depth
(mm)

Contact Point dia
(Ømm)

Anvil dia
(Ømm)

Measuring force
less than (gf) N

Parallelism
(µm)

FFG-1

0.001

±10

1.25±0.15
( 125±15 )

FFG-2

0.001

±10

-0.8
( -80 )

FFG-4

0.01

±22

-0.8
( -80 )

FFG-5

0.01

±22

5
( 19.625mm² )

0.2±0.04
( 20±4 )

FFG-6

0.01

±22

8
( 50.24mm² )

0.51±0.1
( 51±10 )

FFG-7

0.01

±22

5
( 19.625mm² )

0.44±0.1
( 44±10 )

FFG-8

0.01

±22

8
( 50.24mm² )

1.13±0.26
( 113±26)

FFG-9

0.01

±22

35.7
( 10cm² )

-0.37
( -37 )

FFG-11

0.01

±22

25.2
( 5cm² )

-0.35
( -35 )

FFG-12

0.01

±22

16
( 2cm² )

-0.4
( -40 )

Notification for made to order

Each material requires different measuring force,contact point diameter and unit size for JIS compliance.
Please list the approximate specifications according to your individual measuring requirements.

| Page Top |

Stand type FFA Series

1µm type ( integart part of Stand )
FFA 0.001mm Type

10µm type ( with damage prevention stopper )
FFA 0.01mm Type

Measuring material	JIS. NO	Applied Model
Shrink package film.	Z 1709	FFA-1
Polyethylene package film.	Z 1702	FFA-1
Ethylene film.	K 6783	FFA-1
Polyvinyl chloride film.	K 6732	FFA-2
Leather.	K 6550	FFA-3
Artificial leather.	K 6505	FFA-3
Sheet rubber.	K 6328	FFA-4
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD less) Contact Point ø5mm	K 6250A	FFA-5
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD less) Contact Point ø8mm	K 6250A	FFA-6
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD over) Contact Point ø5mm	K 6250A	FFA-7
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD over) Contact Point ø8mm	K 6250A	FFA-8
Urethane form.	K 6402	FFA-9
Common fabric (basic).	L 1096	FFA-10
Adhesive interlined cloth (common weave).	L 1086	FFA-10
Common fabric (fuzzy material).	L 1096	FFA-11
Adhesive interlined cloth (common knit).	L 1086	FFA-11
Stockinet (common knit).	L 1018	FFA-11
Unwoven / interlined cloth.	L 1085	FFA-12
Adhesive interlined cloth (non-woven).	L 1086	FFA-12
Tensile properties of plastics.	K 7113	FFA-13

Specifications Stand type FFA Series

Model

Graduation
(mm)

Range
(mm)

Indicator error
(µm)

Throat depth
(mm)

Contact Point dia
(Ømm)

Anvil dia
(Ømm)

Measuring force
less than (gf) N

Parallelism
(µm)

FFA-1

0.001

±8

1.25±0.15
( 125±15 )

FFA-2

0.001

±8

-0.8
( -80 )

FFA-3

0.01

±20

3.93±0.1
( 393±10 )

FFA-4

0.01

±20

-0.8
( -80 )

FFA-5

0.01

±20

5
( 19.625mm² )

0.2±0.04
( 20±4 )

FFA-6

0.01

±20

8
( 50.24mm² )

0.51±0.1
( 51±10 )

FFA-7

0.01

±20

5
( 19.625mm² )

0.44±0.1
( 44±10 )

FFA-8

0.01

±20

8
( 50.24mm² )

1.13±0.26
( 113±26)

FFA-9

0.01

±20

35.7
( 10cm² )

-0.37
( -37 )

FFA-10

0.01

±20

11.3
( 1cm² )

-2.4
( -240 )

FFA-11

0.01

±20

25.2
( 5cm² )

-0.35
( -35 )

FFA-12

0.01

±20

16
( 2cm² )

-0.4
( -40 )

FFA-13

0.01

±20

10
( 78.5mm² )

-1.57
( -157 )

Notification for made to order

| Page Top |

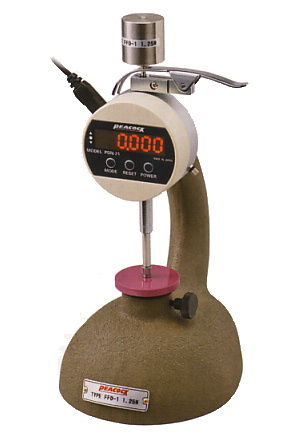

Digital type FFD Series ( with data output )

PDP-1N

Measuring material	JIS. NO	Applied Model
Shrink package film.	Z 1709	FFD-1
Polyethylene package film.	Z 1702	FFD-1
Ethylene film.	K 6783	FFD-1
Polyvinyl chloride film.	K 6732	FFD-2
Leather.	K 6550	FFD-3
Artificial leather.	K 6505	FFD-3
Sheet rubber.	K 6328	FFD-4
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD less) Contact Point ø8mm	K 6250A	FFD-6
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD over) Contact Point ø5mm	K 6250A	FFD-7
Vulcanized rubber / Thermoplastic rubber (Hardness 35IRHD over) Contact Point ø8mm	K 6250A	FFD-8
Common fabric (basic).	L 1096	FFD-10
Adhesive interlined cloth (common weave).	L 1086	FFD-10
Tensile properties of plastics.	K 7113	FFD-13

Specifications Digital type FFD Series

Model

Graduation
(mm)

Range
(mm)

Indicator error
(µm)

Throat depth
(mm)

Contact Point dia
(Ømm)

Anvil dia
(Ømm)

Measuring force
less than (gf) N

Parallelism
(µm)

FFD-1

0.001

±4

1.25±0.15
( 125±15 )

FFD-2

0.001

±4

-0.8
( -80 )

FFD-3

0.01

±20

3.93±0.1
( 393±10 )

FFD-4

0.01

±20

-0.8
( -80 )

FFD-6

0.01

±20

8
( 50.24mm² )

0.51±0.1
( 51±10 )

FFD-7

0.01

±20

5
( 19.625mm² )

0.44±0.1
( 44±10 )

FFD-8

0.01

±20

8
( 50.24mm² )

1.13±0.26
( 113±26)

FFD-10

0.01

±20

11.3
( 1cm² )

-2.4
( -240 )

FFD-13

0.01

±20

10
( 78.5mm² )

-1.57
( -157 )

	Display	LED display For 0.001mm 5 digit For 0.01mm 4 digit
	Power supply	AC adapter
	Data output	BCD (dynamic) negative logic open collector.

\| HOME \| Product Information \| Thickness Gauges \| INDEX: Model No. \|	\| Page Top \|


Design and specifications are subject to change without notice for future improvement.
