| HOME > Product Information > Thickness Gauges |
|
| Constant Pressure Thickness Gauge; FFG-6, FFA-6, FFD-6 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD less) Contact Point ø8mm |
K 6250A |
FFG-6, FFA-6, FFD-6 |
|
|
|

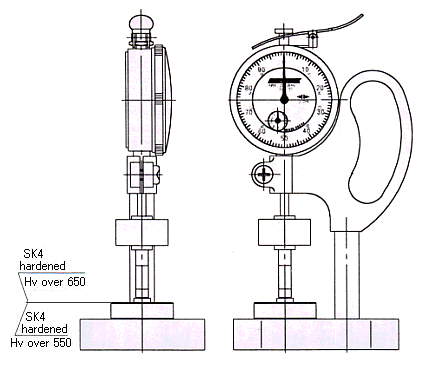

 Specifications Compact type FFG-6 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFG-6 |
0.01 |
10 |
±22 |
24 |
8
( 50.24mm² ) |
30 |
0.51±0.1
( 51±10 ) |
7 |
|
| Page Back |

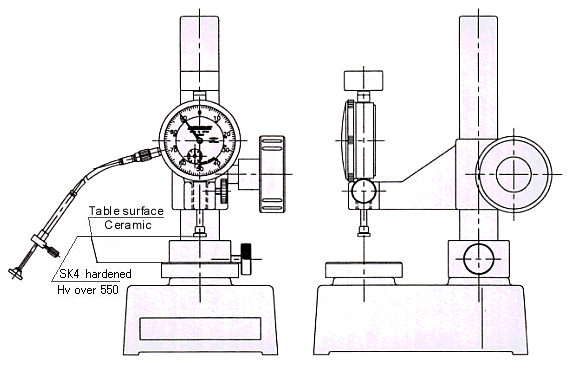

| Specifications Stand type FFA-6 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-6 |
0.01 |
10 |
±20 |
55 |
8
( 50.24mm² ) |
50 |
0.51±0.1
( 51±10 ) |
7 |
|
| Page Back |

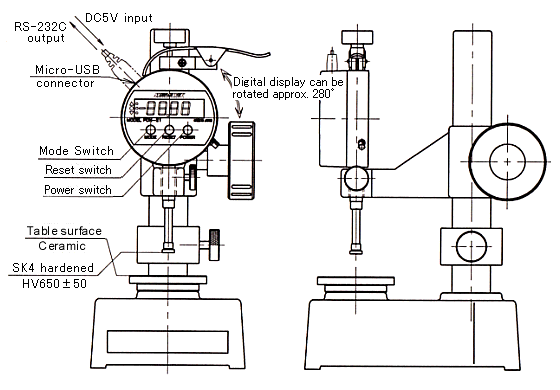

| Specifications Digital type FFD-6 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFD-6 |
0.01 |
20 |
±20 |
55 |
8
( 50.24mm² ) |
50 |
0.51±0.1
( 51±10 ) |
10 |
| Display |
LED display For 0.01mm 4 digit |
| Power supply |
AC adapter ( AC100V - AC240V ) |
| Data output |
RS-232C |
|
| Page Back |
|
